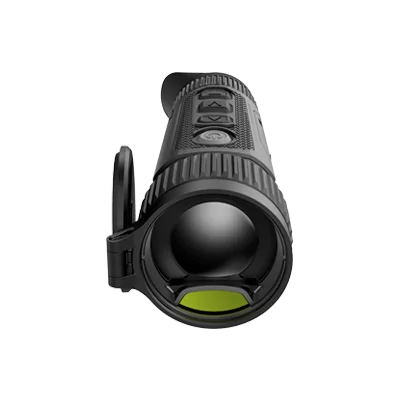

Nocpix Vista H35R Thermal Monocular

VISTA H35R

Vista’s Vision+ System, with its 2560×2560 AMOLED display and 8mm exit pupil diameter, offers an immersive observational experience. Equipped with a superior sensor and integrated LRF, Vista delivers top-tier performance in the industry. Its user-friendly design and improved battery solution make it the ideal companion for overcoming outdoor challenges.

The AMOLED 2560×2560 circular display optimises spatial efficiency, delivering vibrant visuals. Boasting an exit pupil diameter of 8mm and the Pure Vision Mode, the Vista ensures comfortable and immersive viewing experience. Our self-developed NETD ≤15mk 1280×1024@12μm sensor guarantees high image quality and stable performance. Animal silhouettes, anatomy, and behavioral peculiarities become easily distinguishable. Our 2-in-1 integrated rangefinder (LRF 1200m) seamlessly blends aesthetics with true optical axis alignment. This lightweight, compact design ensures minimal lens area usage while maintaining flawless image quality. The Vista equipped with a 60Hz detector, offers superior fluidity, allowing for the precise capture of moving animals and high-speed scenes. This significant upgrade from 50Hz ensures smoother and more accurate visuals. The F0.9 lens is designed to enhance light intake by 20%, significantly improving image brightness and quality compared to traditional F1.0 lenses. This advancement ensures that every detail is vividly clear, making Vista the perfect companion for night observations. The Vista offers two charging options: interchangeable IBP-7/4400mAh batteries that can be swapped easily, or direct charging via its built-in port. This ensures extended operation, so you can focus on the hunt without battery concerns. With its superior 2X base magnification and expansive field of view, the Vista S50R provides an outstanding perspective on your surroundings. This allows you to effortlessly spot and monitor multiple targets across vast landscapes, ensuring every movement is captured with clarity. The Vista offers 7 distinct colour palettes, including red and pure green monochrome modes. These eye-friendly options help reduce visual fatigue, ensuring prolonged use without strain. Vista’s silent buttons ensure quiet use in the dark, while the rotatable eye mask prevents light leakage, keeping your presence concealed from animals. The fully wrapped TPU faux leather texture provides a comfortable grip, making extended use effortless.

• Thermal Sensor
• 640×512 & 12μm

• NETD,mK
• ≤15

• Frame Rate,Hz
• 60

• Objective Lens,mm
• 35 F0.9

• Field of view(H×V),°/m@100m
• 12.5×10.0 /22×18

• Magnification,×
• 3~28

• Detective range,m（Target size:1.7m×0.5m,P(n)=99%)
• 1800

• Exit relief,mm
• 25

• Exit pupil diameter,mm
• 8

• Diopter,D
• -4~+6

• Type
• 1.03inch OLED

• Resolution
• 2560x2560

• Battery Type
• 4400mAh Battery pack

• Max.operation time,(t=22℃)h
• 5.5

• Safety Class for Laser
• Class 1

• Max.Rangerfinder distance,m
• 1200

• MIC
• Yes

• Memory capacity,GB
• 64

• IP rating
• IP67

• Operating temperature,℃
• -20 ~ +50

• Weight,g(with battery)
• 640

• Dimension,mm
• 190×67×79
